劲驰卫生间管线与墙体集成系统代表着一种全新的建筑卫生间设计施工理念。为卫生间的设计提供完全自由、安全、高效、便捷、标准的施工解决方案。无论是住宅、商业还是工业项目,劲驰卫生间管线与墙体集成系统都将成为未来建筑卫生间的重要组成部分。

原理

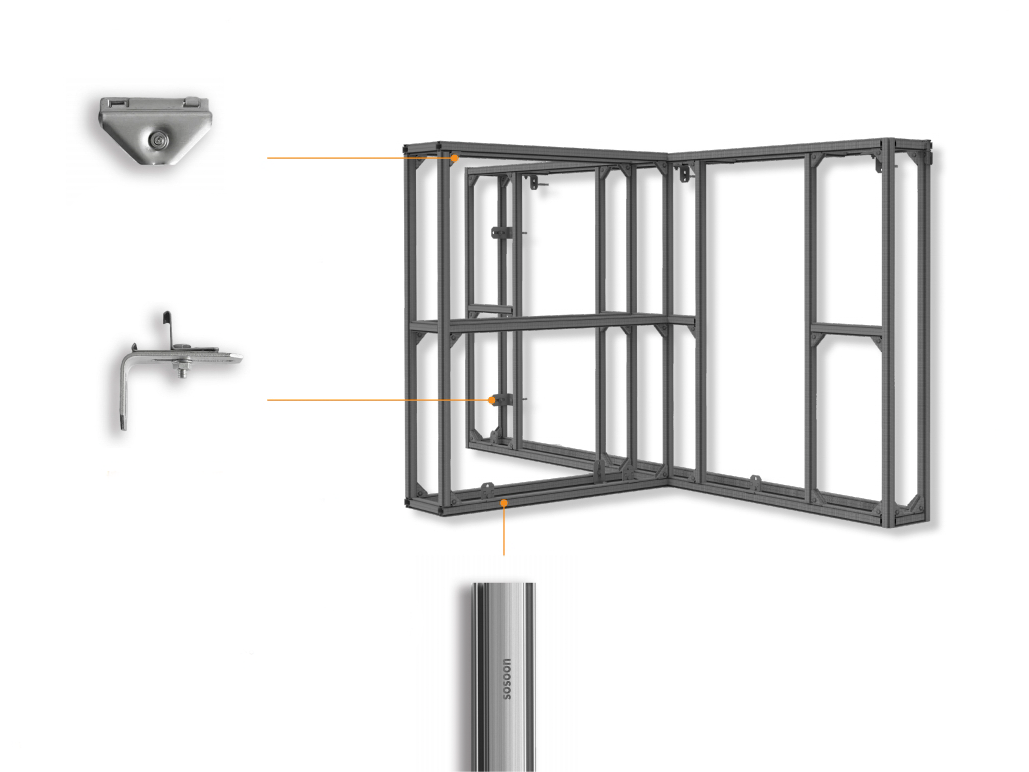

劲驰墙体系统由异型钢管、角连接件和抱爪连接件三个构件组成。创新的角连接件用于将异型钢管以90°或45°的角度连接在一起,其原理是通过紧固每个角连接件,使其紧紧嵌入异型钢管的卡槽内,使结构可轻松吸收所有拉伸和压缩力,保证了极高的稳定性。

卫生间管线与墙体集成系统组成



卫生间管线与墙体集成系统

角连接件

同层地漏

隐蔽式水箱支架

墙体系统

排水管道系统

固定管卡

洗脸盆支架

墙地连接件和抱抓

异形钢管

淋浴房支架

供水管道系统

墙体模块



劲驰墙体系统可以用于搭建成不同功能的墙体模块,也可以与劲驰成品的卫生模块进行快速拼装。

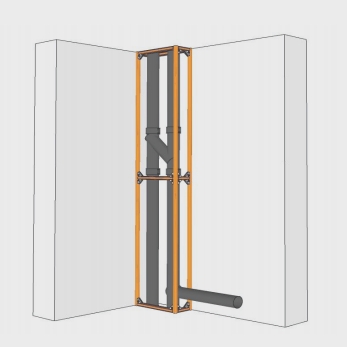

管道井

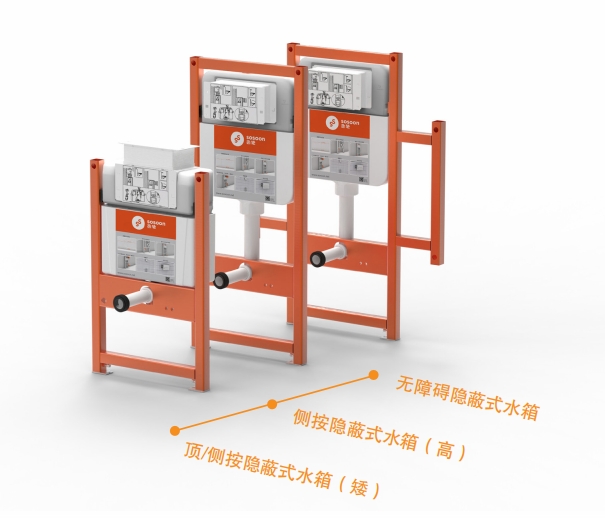

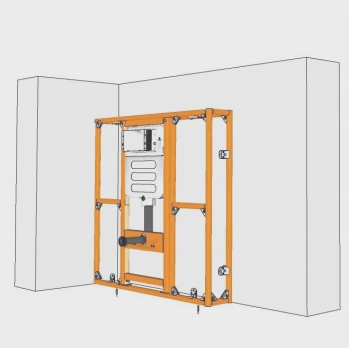

隐蔽式水箱

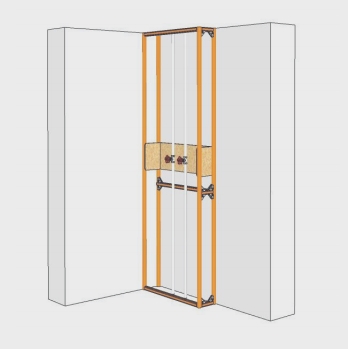

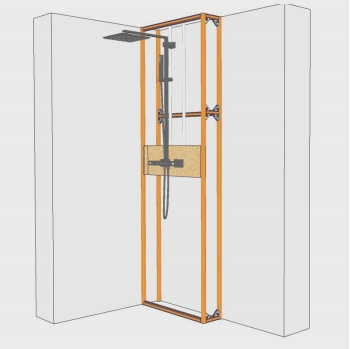

淋浴房

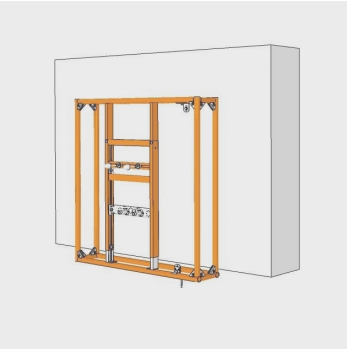

洗脸盆支架

管井

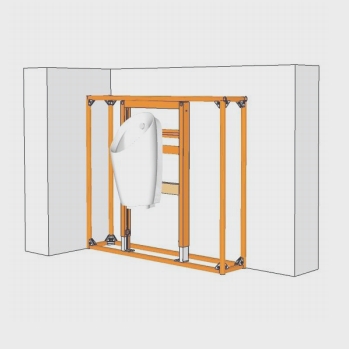

小便斗支架

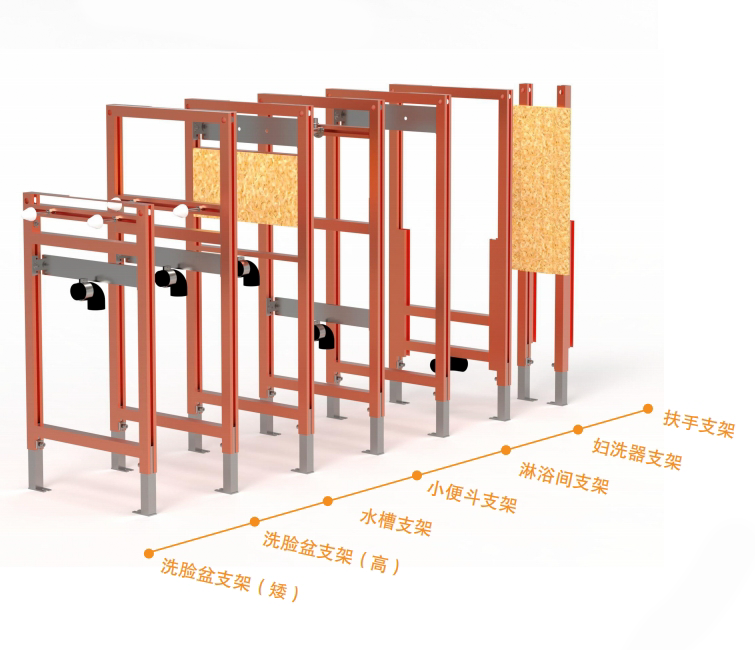

劲驰卫生设备支架系统
